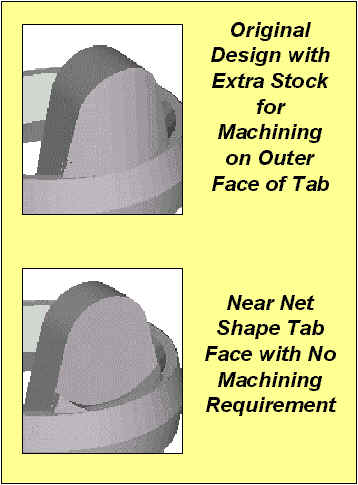

The outer faces
of the four tabs are a good candidate for eliminating machining.
- In the original design extra stock was required on the outer
faces of the tabs to accommodate the limits of the forging dies.
- Using metal casting in sand molds, the flats on the outer
faces of the dies can be produced in the casting, totally eliminating the face machining
on the four tabs.
