BASELINE PATTERN DESIGN

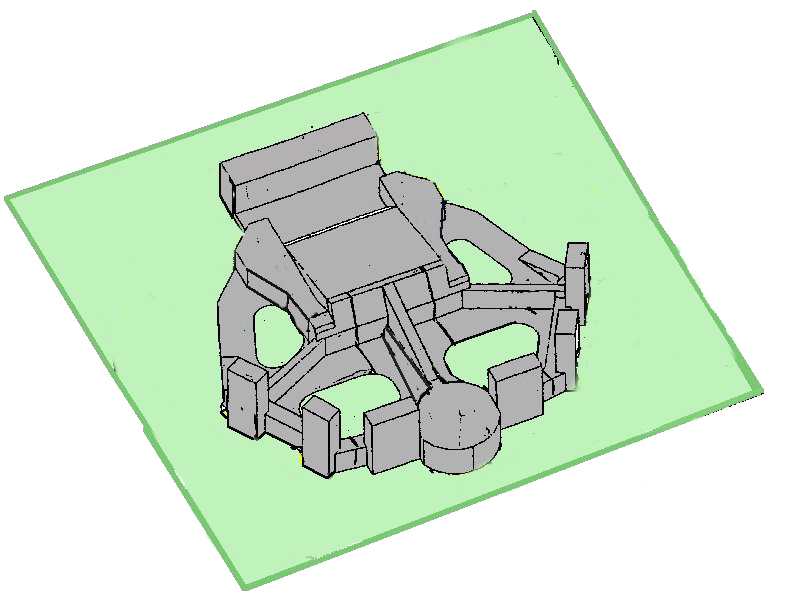

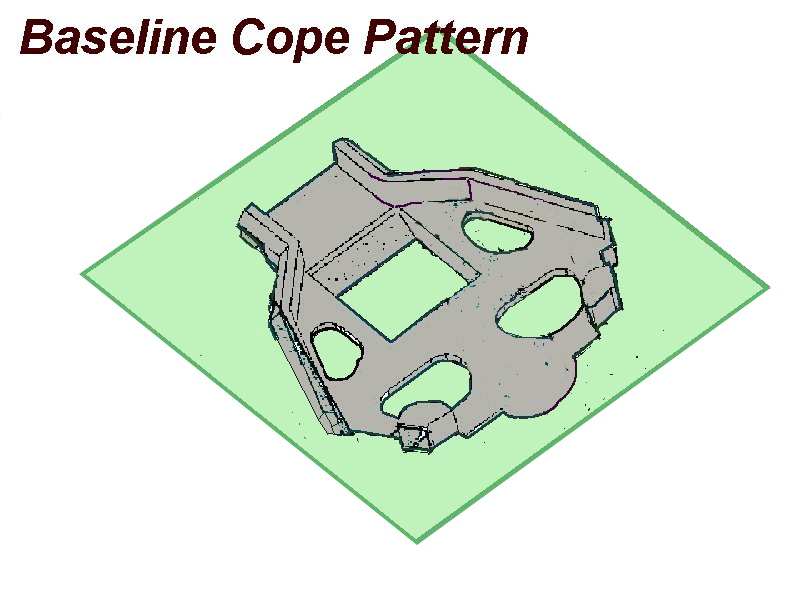

After reviewing the component design from a casting perspective, the patterns for the cope and drag sections of the mold are prepared
![]() |
![]() |
The next step is to add casting features to the pattern to accommodate for metal solidification and flow. These features are risers, gates, runners, and sprues.
![]() |
