Riser Sizing and Placement
Design Criteria -- Risers are reservoirs of
molten metal to supply the solidifying, contracting molten metal in the casting with
make-up metal. They are used to prevent internal or external voids due to shrinkage.
|
|

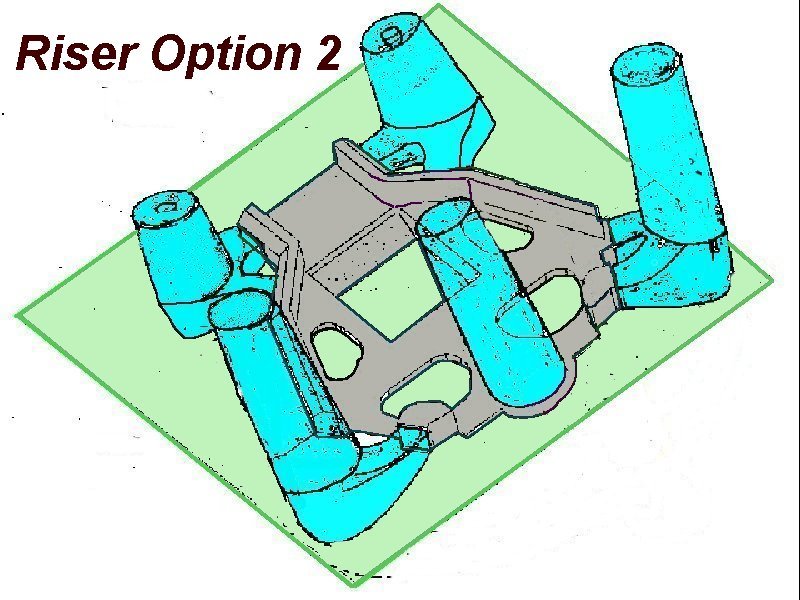

Design Options -- Two riser options are provided.
Choose the riser design for the cope pattern that
provides the shortest, most direct metal feed during cooling.
|
||
![]() |
![]() |
|
Option 1 | Option 2 |
![]() |
