A Design Study in Steel -
Spokane Industries Steel Snubber Arm
Controlling
Solidification in the Casting
When metal solidifies, it
shrinks in volume from the molten state.
It is common
casting practice to use a "riser" as a reservoir of
molten metal . The risers act as "back fills" which feed molten
metal
into the casting as it shrinks during solidification.
A riser, being the last section to solidify, acts as a "trap" for the solidification shrinkage.

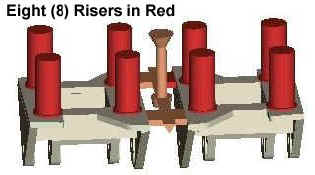

Risers are
commonly positioned to feed into the sections of a casting which
will be the last sections to solidify. In that position the risers
promote "directional solidification".
Directional solidification
is defined as the process in which the casting --
"cools and solidifies progressively from thin sections to heavy sections with
constant metal feed into
the heavy sections."
