C, the flange plate on the hinge plate, is approximately 1.5” thick, 13” long,
and 35” wide at the base.
With the triangular shape and the pivot rod hole on the
end of the plate, a “hot spot” is unlikely to develop in this section.

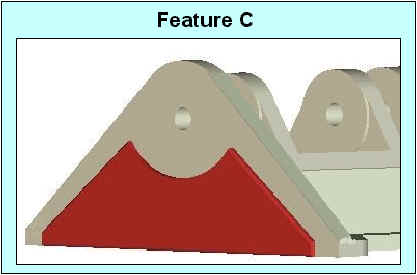

The picture shows a proposed pad, but no padding is necessary on the flange section of the
hinge plate |
