Feature A, the circular knuckles
(4diameter) on the small tabs are 1.6 thick to provide strength and stiffness.
The walls connecting the tabs to the main ring are 0.86 thick.
-- The difference in thickness between the tabs and the
connecting wall will produce a hot spot.

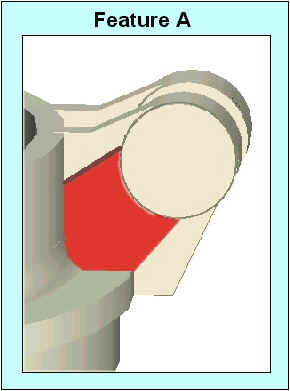

The drawing shows the feed pads (in red) added to
the walls to prevent thermal isolation and promote metal feed into the knuckle section.
-- The pads also serve to stiffen and strengthen the
small tabs.
|
