ASTM A536 Grade 100-70-03
Ductile Iron

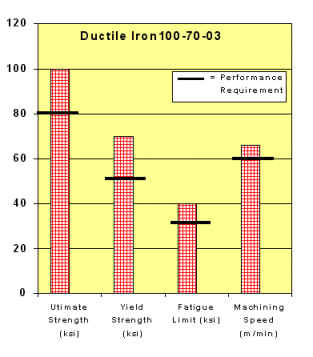

- The 100-70-03 ductile iron is a high strength alloy
(100 ksi ultimate and 70 ksi yield) that can easily meet the mechanical requirements of
the coupler. The ductility is limited to 3%.
- The fatigue limit of the 100-70-03 alloy is 40 ksi and
does meet the performance requirements.
- The alloy has a nominal machining speed of 66 m/min
with carbide tools.
- Overall, the 100-70-03 alloy is the best alloy
selection.
The
100-70-03 ductile iron alloy is the best alloy choice.
