| Design Criteria -- Review the design, looking for flat
sections that can be lightened and long thin ribs that need to be tapered to promoted
directional solidification |
|
|

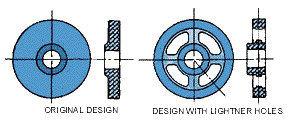

- Large flat sections are difficult to feed and to develop good
directional solidification. Lightener holes eliminate the problem of isolated flat
sections; they also save weight. But they need to be placed in "non-structural"
areas.
|
|
 |
|
|
|

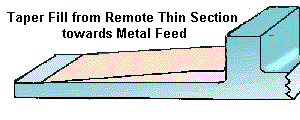

- Adding taper along a rib or section from the cold region to the hot
region promotes directional solidification and prevents shrinkage pores.
|
|
 |
