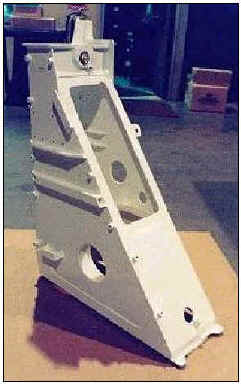

The uplock support is
designed as a box structure with a right triangular shape.
- The dimensions are 35" x 26" x 12".
- Minimum wall thickness is 0.120".
- The box is cast in aluminum with a machined weight of
33.5 pounds.
The box has numerous holes, flanges, internal and
external ribs, lugs, clevises, bosses, and stand-offs for structural, assembly and system
routing purposes. |
Uplock Support
|
|
