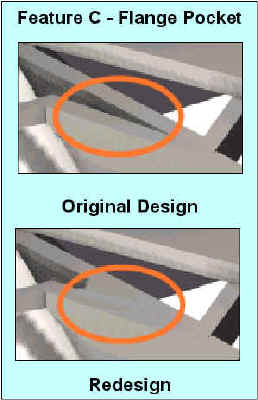

Feature C - Flange Pocket
That thin arm would be vulnerable to breakage because of its length and its small cross-section.
Feature C should be redesigned to reduce the length of the pocket.
This not only reduces the chance of core breakage; it also strengthens the flange.
Choose another feature or Go on to the next design issue.
