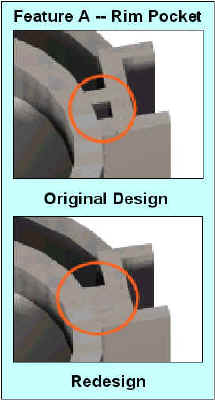

Feature A - Bowl Rim Pocket
That thin extension would be vulnerable to breakage because of its small cross-section.
The flange and bowl should be redesigned to eliminate the pocket and form a solid junction between the bowl rim and the flange.
This not only reduces the chance of mold breakage; it also increases the bending resistance of the flange.
Choose another feature or Go on to the next design issue.
