The intermediate lever arm
is a critical component in the Valvetronic system. It moves
under the action of the eccentric cam to shift the finger follower pivot
point and modify the valve stroke under the action of the cam shaft.

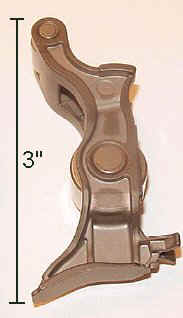

The lever arm is a 3" (7.5 cm) long steel
bar with stiffening ribs, cut-outs, slots, tabs, and bearing/profile faces. The
cross-section envelope of the arm is about 1" by 1".
-
The thinnest wall is less than 1.5
mm thick; the thickest wall is 3 mm thick.
-
The as-cast weight of the lever arm is 50
grams.
-
The finished assembly weight with the bearings is 80 grams.
|
