Finished Cope and Drag Patterns
The patterns for the cope and drag sections of the mold are prepared incorporating all the casting features and setting up for a 6-on pattern

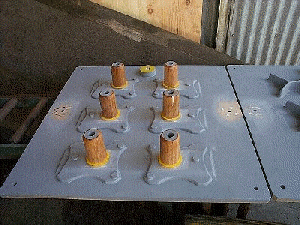

Photo of Final Cope Pattern showing the Risers on Each Cleat

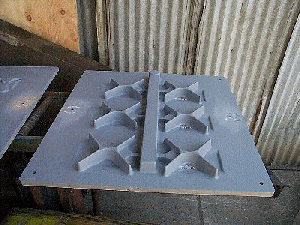

Photo of Final Drag Pattern showing the Gates and the Runner
With these patterns, molds were made and the cleats were cast using standard practices.
