Baseline
Design
for the Cope and Drag Patterns
Baseline
Pattern Design After
reviewing the component design from a casting perspective, the patterns for the cope and
drag sections of the mold are prepared incorporating the casting features on the
component. |

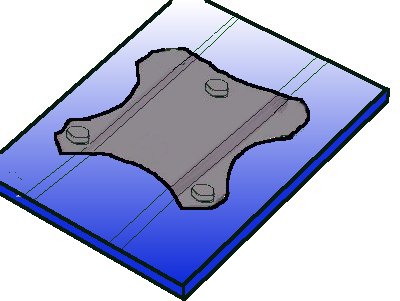

![Cope Pattern-Baseline](images/Cop2.jpg) Baseline
Cope Pattern |

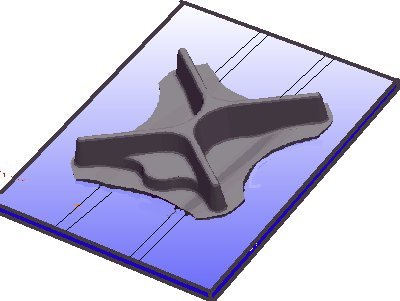

![Drag Pattern- Baseline](images/Drag3.jpg) Baseline
Drag Pattern |
The next step is to add
rigging features to the pattern to fill the cavity and control the solidification.
These features are risers, gates, runners, and sprues. |
