ASTM A536 Grade 60-40-18
Ductile Iron

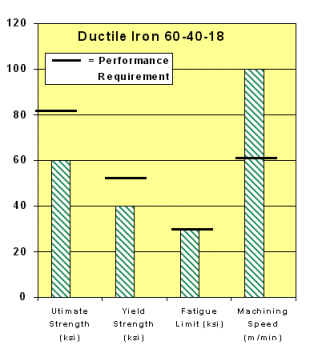

- The 60-40-18 ductile iron alloy has moderate strength
(60 ksi ultimate and 40 ksi yield) that cannot meet the mechanical requirements of the
coupler.The ductility of 18% is high.
- The fatigue limit of the 60-40-18 alloy is 30 ksi and
does meet the performance requirements.
- The alloy has a nominal machining speed of 100 m/min
with carbide tools which meets the machining requirement.
- The 60-40-18 ductile iron alloy does not meet all the
performance requirements
Go back
to the alloy page and select an alternate cast iron alloy. |
